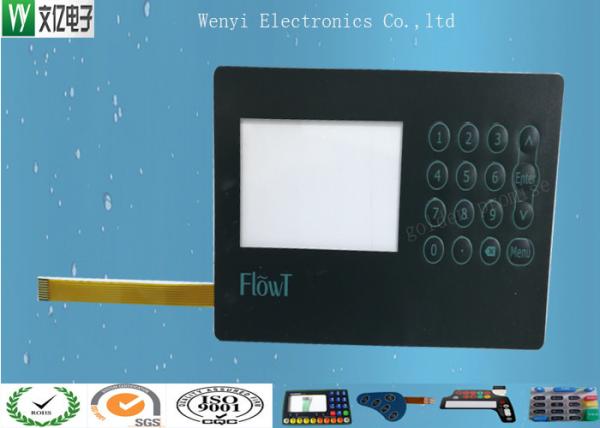

Illuminated Waterproof Membrane Switch With Numerical Serial Number Digital Print

Name: Illuminated Waterproof Membrane Switch With Numerical Serial Number Digital Print
Brand: WenYI Electronics
Price: 1 USD

Brand Name : WenYI Electronics

Model Number : GPI-FMS-006

Certification : RoHs, SGS, ISO9001:2008

Place of Origin : Made In China

MOQ : 10 pcs/ lot

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 500,000 pcs/ Month

Delivery Time : 10-14 working days

Packaging Details : each in ploybag, then in carton box , as per customer request

Circuit type : FPC circuit

Overlay : PC / PET 0.15 mm overlay

Connector : Weld Pin

Surface : Sand Finish or as per high glossy

Special Point : Numerial Serial Number

Keys : Single Key with Embossing

Print : Digital print with serial No

Contact Now

Digital Print Single Key Embossing FPC membrane switch with numerial serial number

Circuit type: FPC flexible Circuit

Embossing: LED window and Key embossing, Round Embossing

Connctor Brand: ChangJiang or any brand as per request.

Special Point:　Print Numerial serial number

Backadhesive: 3M 467

Window Color: Clear Led window

Print: Digital Print

A membrane switch is a user interface device that is made up of several layers and used as a switch to turn a device on or off. Unlike mechanical switches, which are generally constructed with copper and plastics, membrane switches are printed circuits on film.

Application

* Medical Equipment or Device
* Telecommunications apparatus
* Smart phone systems
* Household appliances
* Security systems
* Home Appliance
* industry control keypad panel
* consumer electronics and 3C items.

Technical Specification:

Keyp Content	None tactile	Tactile
Contact Rating:	30 DVC maximum,100mA maximum, 1 watt maximum	30 DVC maximum,100mA maximum, 1 watt maximum
Operating Contact Resistance	Less than 100 OHMS typical	Less than 100 OHMS typical
Contact Bounce	5ms typical	10ms typical
Life Cycles	>2,000,000	>1,000,000
Operating Force	170-700grams	170-700grams
Switch travel	0.1mm-0.4mm	0.6mm-1.0mm
Switch thickness	0.6mm-1.52mm	0.6mm-1.52mm
Storage Tem	-40°C to 65°C	-40°C to 65°C
Operating Tem	-40°C to 65°C	-40°C to 65°C
SMT Process	For LED SMT process	For LED SMT Process
